Technical information
Productivity during primary grain cleaning
Do 5 t/godzin
Electricity consumption
0,2 – 0,5 kW/h
Power supply
230 V
Warranty
12 months
Length
1190 mm
Width
850 mm
Heights
600 mm
Weight
60 kg
Description

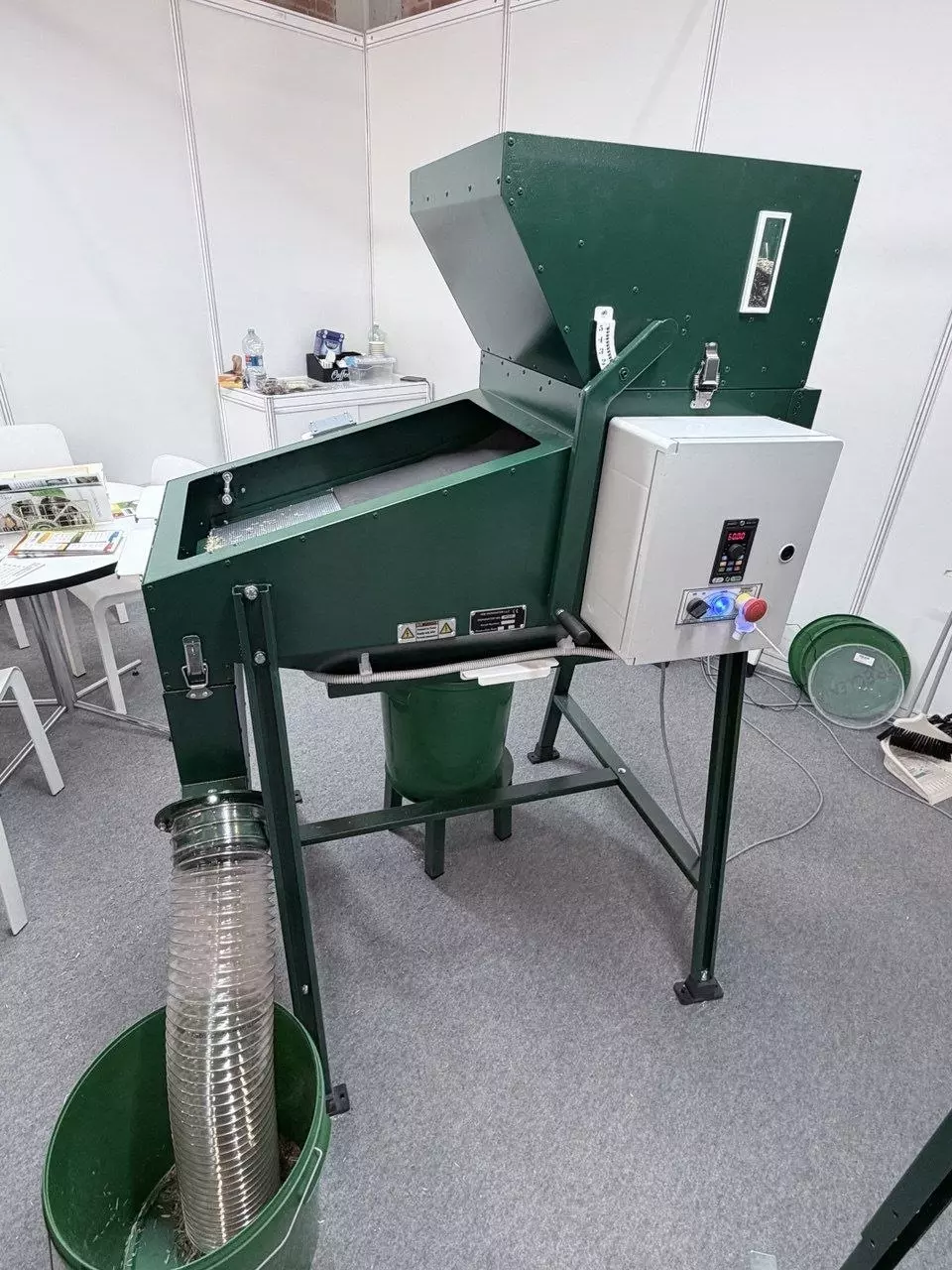

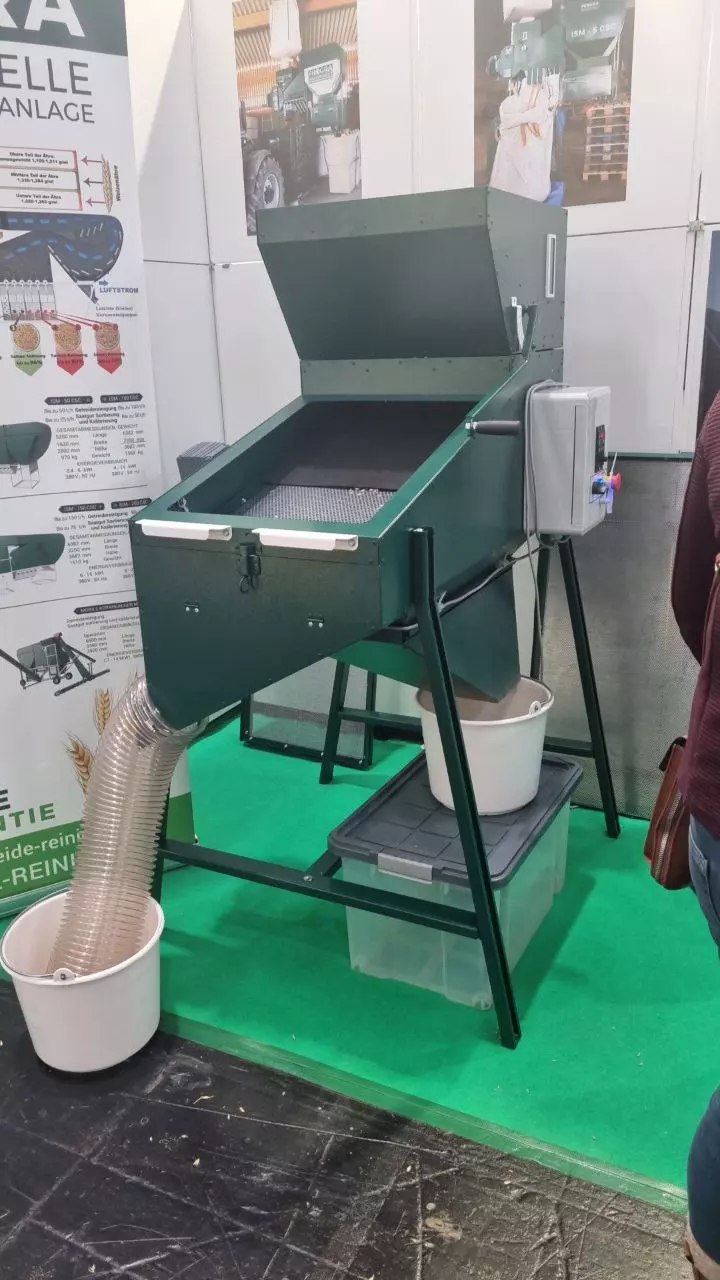

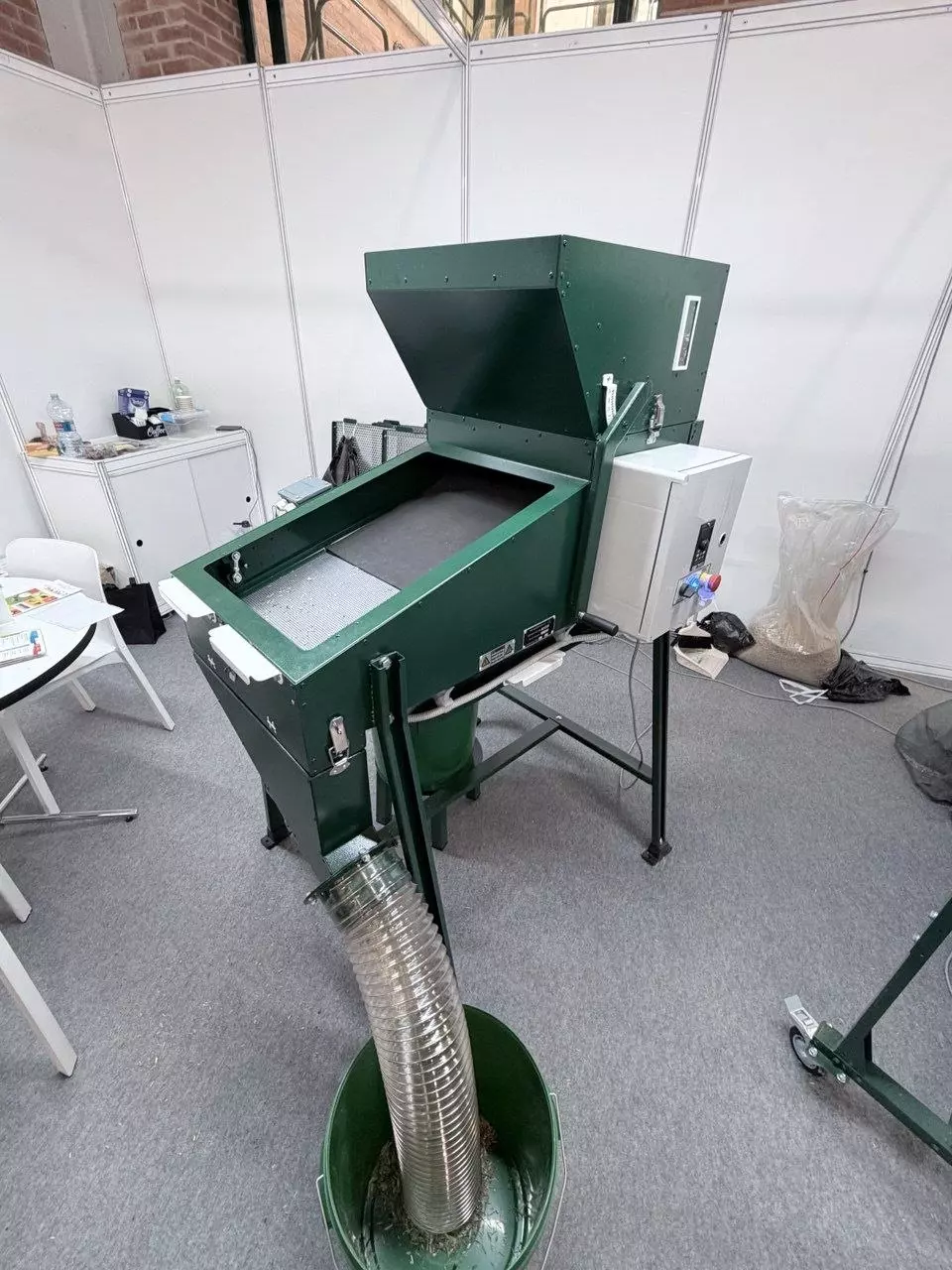

Pre-cleaning unit PC-5 is an innovative and reliable device, designed for efficient removal of large contaminants from grains and other bulk materials.
“PC-5” is equipped with a movable frame with a mounted calibration grid:

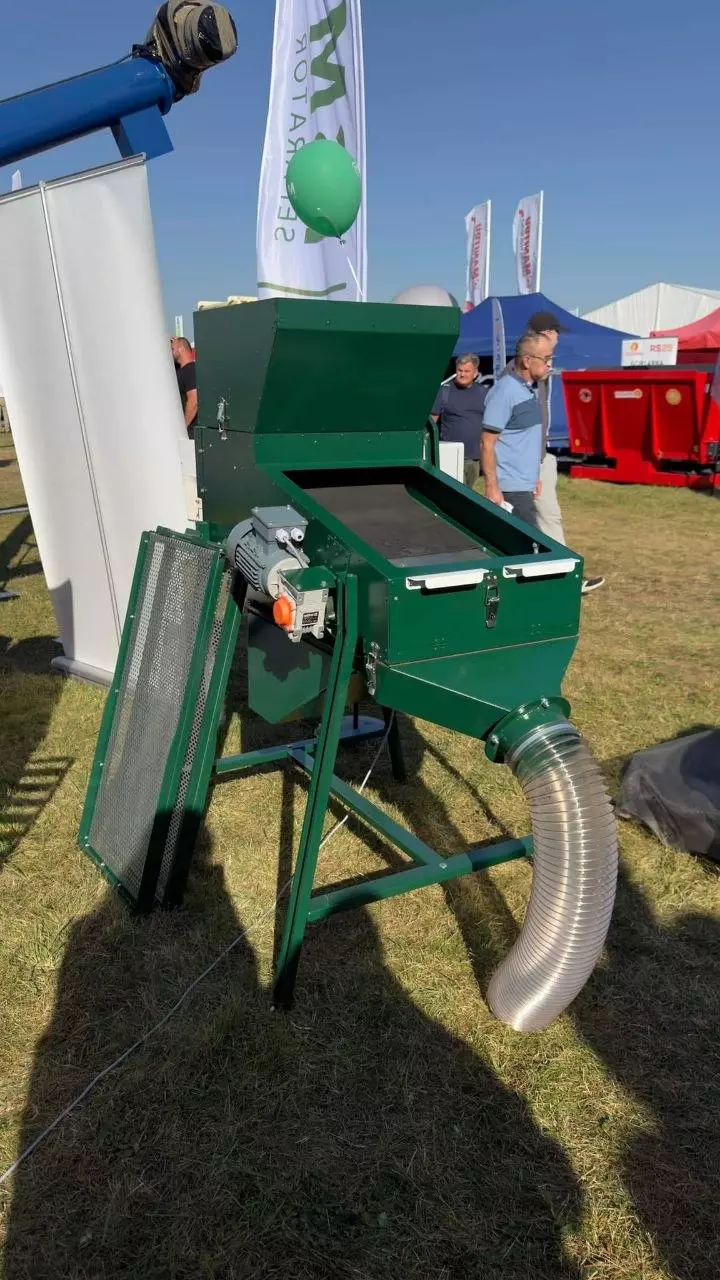

▪︎ The mesh is mounted on a frame, which can be easily removed for replacement or cleaning.
▪︎ The movement of the frame is carried out by a geared motor, which provides reciprocating motion.
▪︎ The frequency of movement is adjusted by means of a frequency converter, which allows the operation of the machine to be adapted to different conditions.

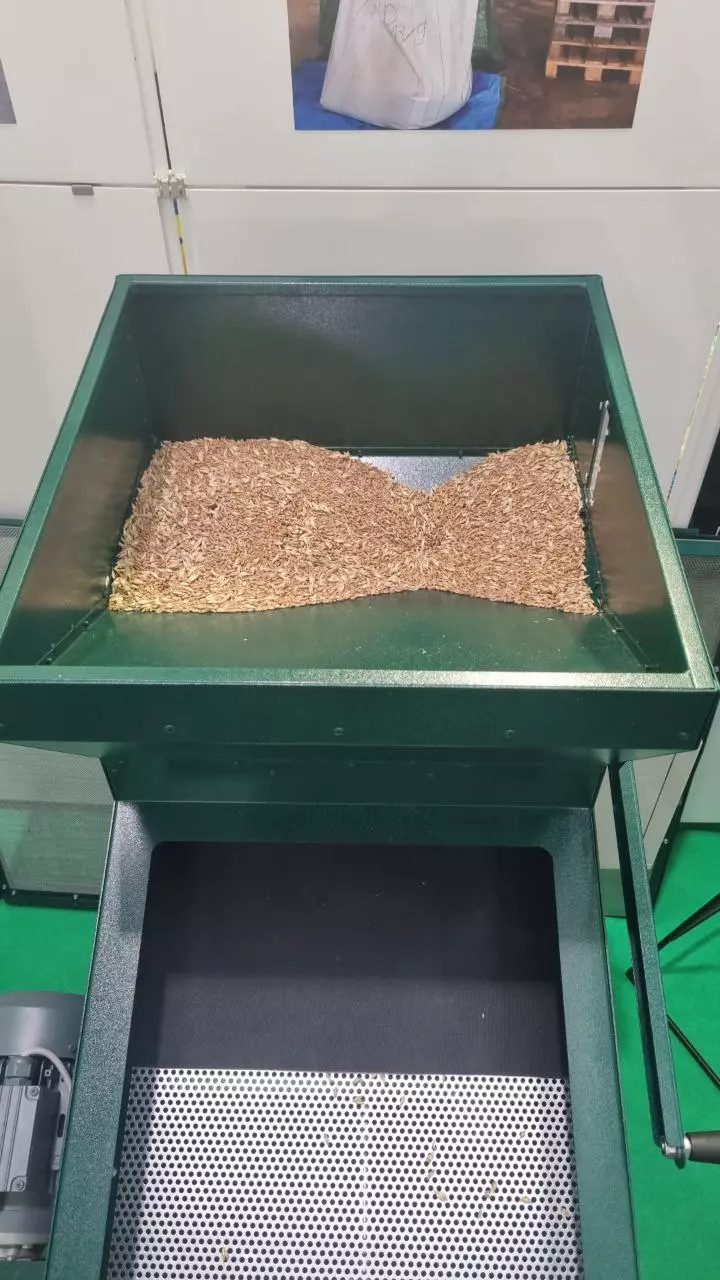

The raw material is fed onto a moving mesh with a small amplitude of vibration and high speed.
During the movement of the grid, the grain is separated according to certain sizes:
▪︎ Large impurities (stones, straw) remain on the surface of the mesh and are removed into a special waste hopper.
▪︎ The cleaned material passes through the mesh and is directed to a receiving hopper for further processing.
The device can be used as stand-alone equipment or as an additional unit in combination with ISM-3, ISM-5, ISM-10 aerodynamic separators.
Advantages Of ISM Separators
The lack of a vibrating tray excludes grain damage during operation.
Does not require complicated maintenance.
Simplicity of design and reliability of the entire machine.
No lubrication points and replaceable components.
Fast transition from culture to culture.
Separation of grain mixtures.
