Technical information

Productivity during primary grain cleaning

up to 10 tons per hour.

Productivity during calibration

up to 5 tons per hour.

Electricity consumption

0,2 – 0,75 kWh.

Power supply

220 V, 380 V

Appointment

Calibration, Primary cleaning

Number of fractions

Type

Non-cyclone

Length

2420 mm

Width

460 mm

Heights

1880 mm

Weight

180 kg

Warranty

24 months

Description

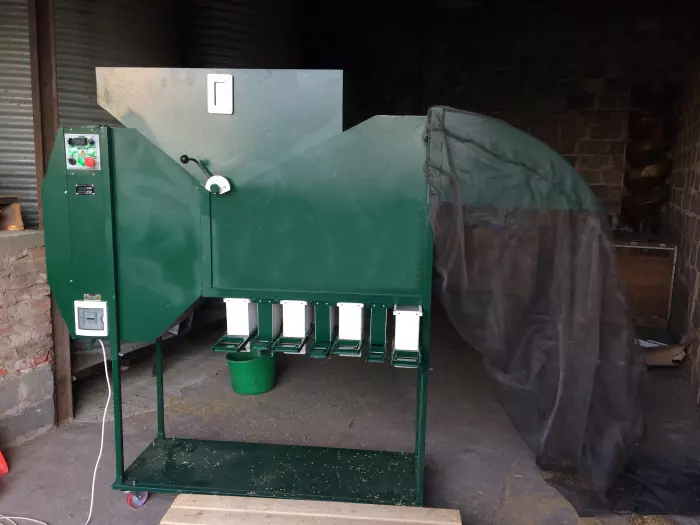

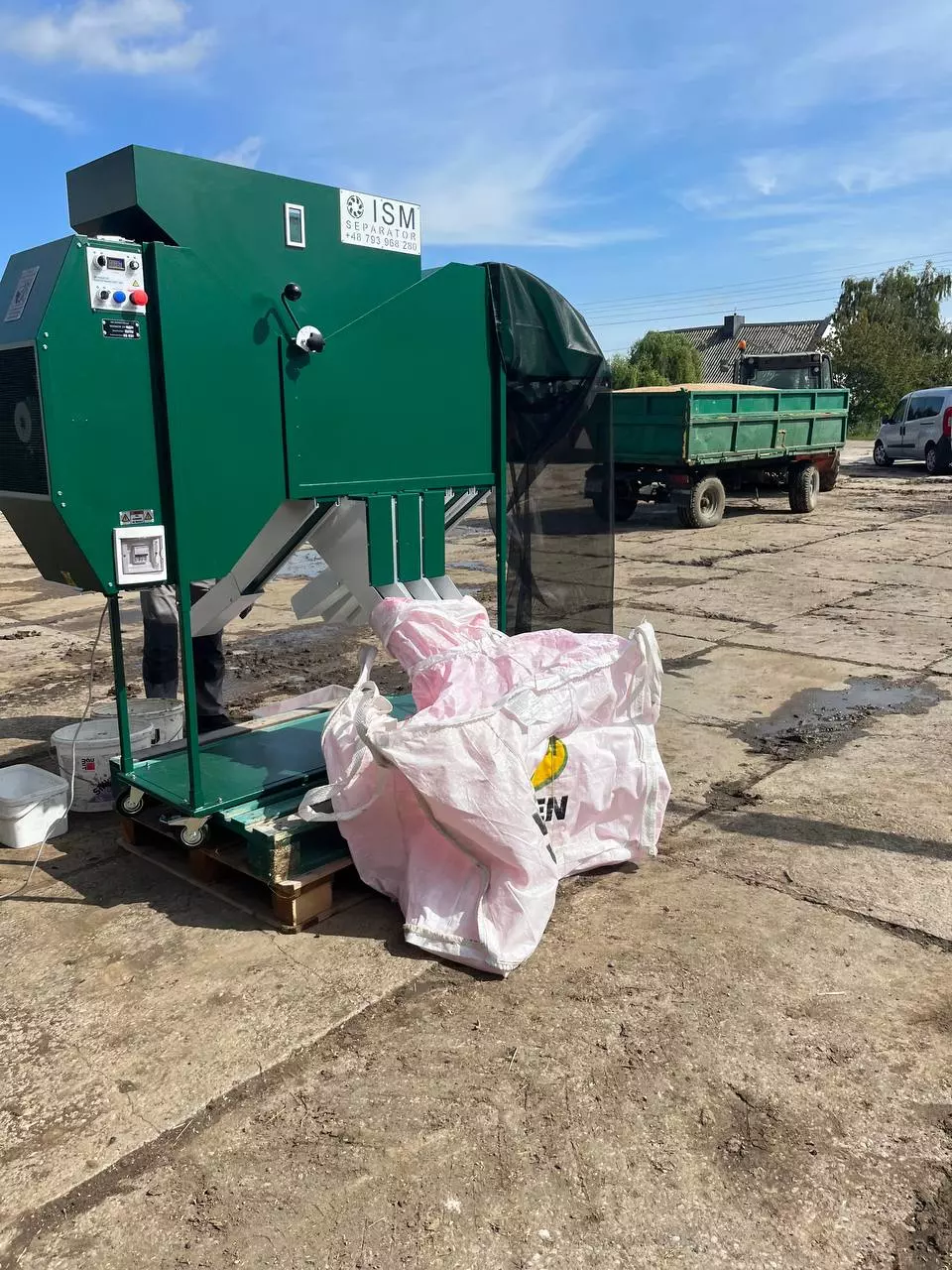

The ISM-10 is a separator designed for the precise cleaning and sorting of cereals and seeds. Thanks to its refined design and simple operation, it ensures consistent and repeatable performance under a variety of conditions.

Applications:

The separator can handle various types of material, including cereals such as wheat, barley, oats and maize, as well as oilseeds and pulses such as rapeseed, soya, peas, beans and other seeds.

Design and ergonomics:

The ISM-10 separator has been designed with comfortable and flexible operation in mind. Adjustable telescopic legs allow the height of the unit to be adapted to working conditions and the layout of the workstation.

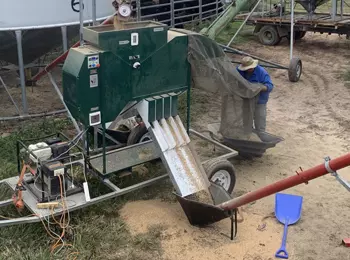

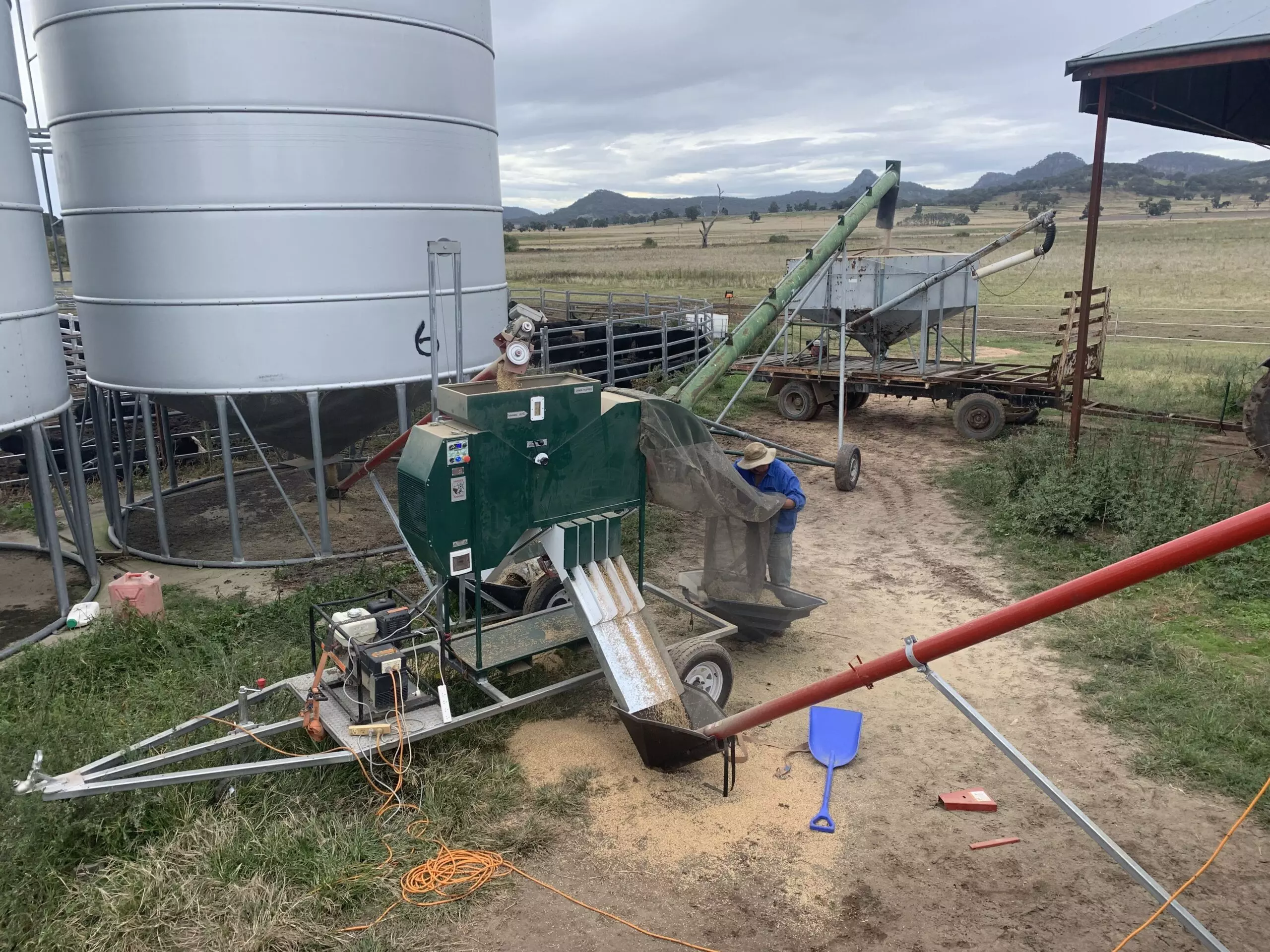

The machine can be used with various material collection systems, including standard bags with a capacity of approximately 50 kg, big bags, screw conveyors and other transport systems.

Thanks to its compact design and height-adjustable feature, the separator can be easily integrated into an existing production line or used as a stand-alone workstation.
